180W Rechargeable Mobile LED Lighting Tower – Waterproof Explosion-Proof Searchlight for Mining, Fire & Disaster Rescue

Description

• Explosion-Proof Structure: Designed with a combined explosion-proof structure (flameproof, encapsulation, and increased safety), ensuring safe operation in Zone 1 and Zone 2 hazardous areas containing flammable and explosive gases. The unit features an IP66 protection rating, making it suitable for long-term use in harsh outdoor environments, including rain and snow.

• High-Efficiency Illumination: Equipped with a high-performance LED light source featuring excellent luminous efficacy, environmental friendliness, and a long service life. With a maximum power of 180W, it provides powerful, large-scale lighting ideal for various construction sites.

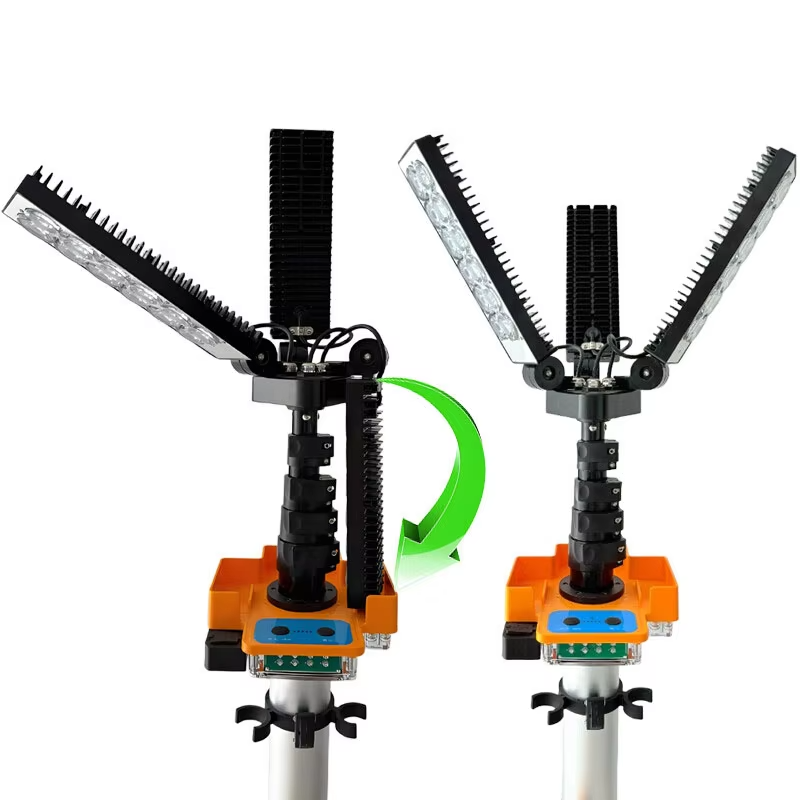

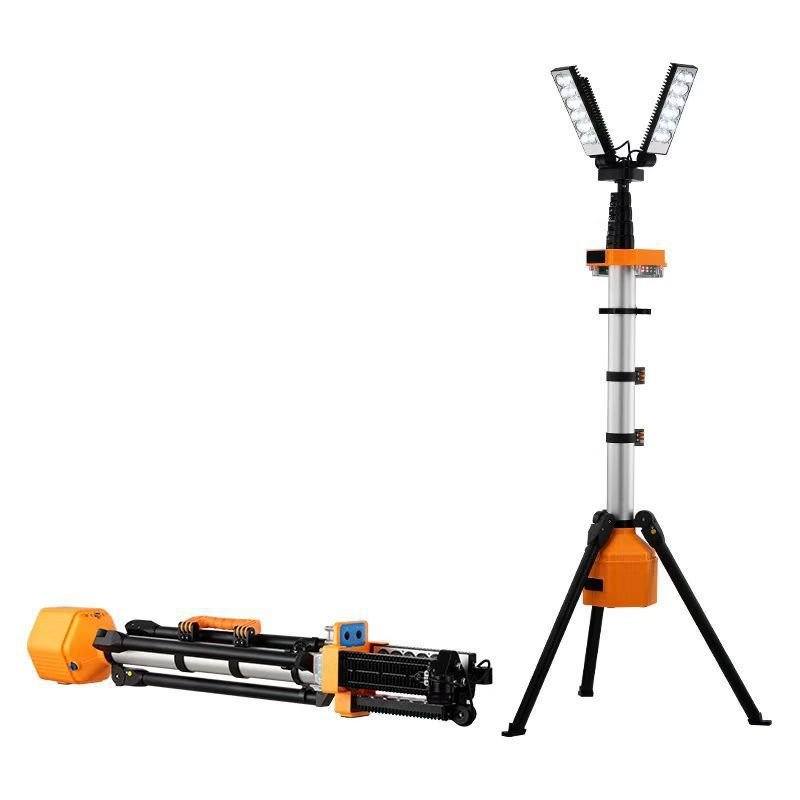

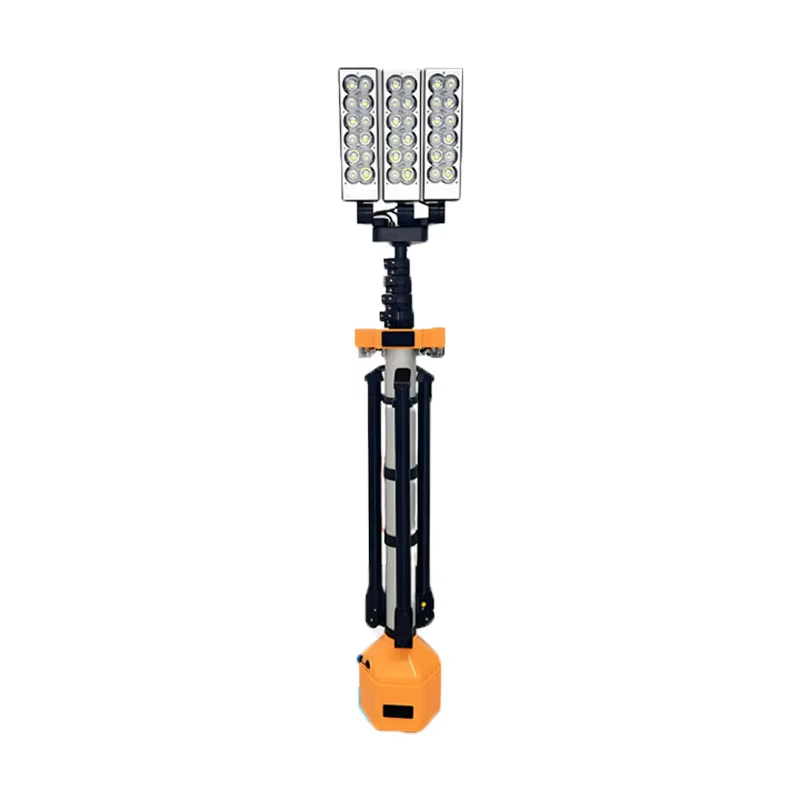

• Versatile Three-Head Design: Features three adjustable light heads that can be positioned horizontally and vertically. This allows for 360° omnidirectional lighting or targeted single-sided illumination. The integrated five-section telescopic mast can be extended up to 4 meters, meeting diverse lighting requirements.

• High-Capacity Power System: Powered by a high-energy, low-self-discharge lithium battery pack. On a full charge, it provides up to 6 hours of High-Intensity lighting, 9 hours of Working Light, and 12 hours of Low Light. Internal circuitry includes built-in protection against overcharging, over-discharging, and short circuits for maximum safety.

• Integrated Warning Lights: Equipped with high-visibility red and blue warning lights on the front and both sides, which can be operated independently. With a visibility range of over 1 km, they effectively alert pedestrians and vehicles to ensure safety at the work site.

• Stable & Portable: Includes retractable tripod legs for enhanced stability. The design is simple and convenient, making it ideal for tasks requiring frequent relocation.

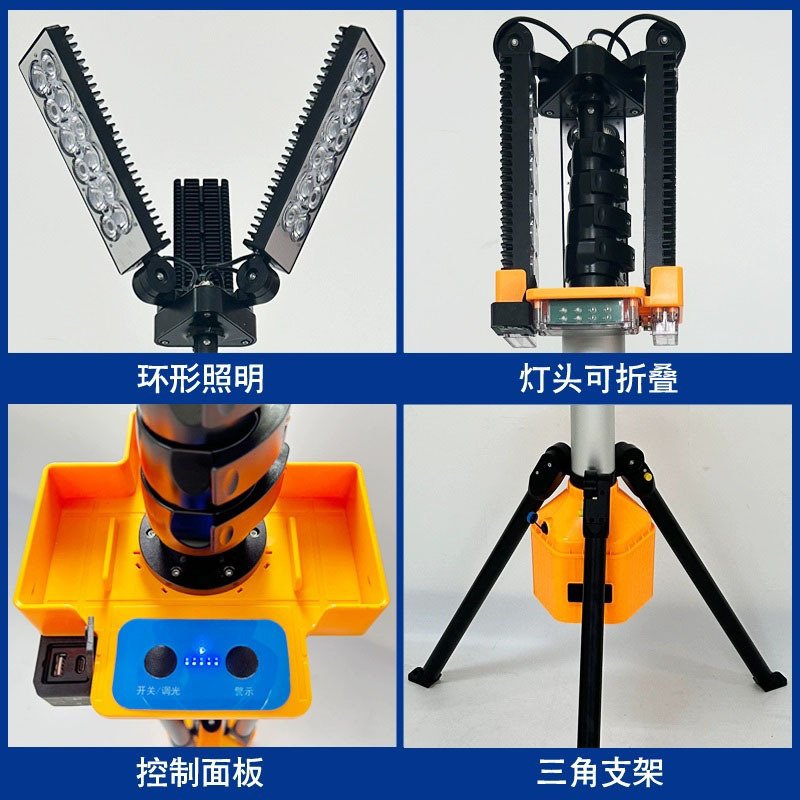

• Dual Control System:

  • Manual Control: Features an onboard panel for three-level dimming, warning light activation, and a five-segment battery level indicator.

  • App Control: Connect via Bluetooth to the dedicated app to adjust brightness (stepless dimming), toggle lights and warnings, monitor battery levels, and check charging status from up to 30 meters away.

• Compact & Ergonomic: Compact and lightweight, supporting multiple carrying options including handheld and backpack-style transport.

• Instructions for Use

  1. Installation and Retraction of Tripod Legs

  • 1.1 Installation: Place the lamp on a level surface. Open the two support legs on the handle side, press the leg lock, and hold the lamp upright. Open the third support leg, lock it securely, and insert the ground stakes to fix the legs in place. Ensure all three legs are locked firmly and do not wobble.

  • 1.2 Retraction: After retracting the telescopic mast, hold the handle with one hand and release the support leg locks. Fold the legs upward and secure them into the leg retaining ring. Once retracted, place the lamp in a safe area to prevent it from tipping over, which could cause damage or injury.

  2. Telescopic Mast Operation

  • 2.1 Initial Setup: After installing the tripod, pull the outer ring of the top lock outward to extend the top section of the mast until the base of the lamp head is higher than the lamp head cover. Push the lock ring inward to secure it, then adjust the lamp head to the desired angle.

  • 2.2 Extending: To increase the height, hold the top mast section, pull the lock ring outward, adjust to the desired height, and push the lock ring inward to secure. Repeat this process (Pull ring → Adjust height → Push ring to lock) for each subsequent section until the desired height is reached.

  • 2.3 Retracting: Pull the bottom lock ring outward. Due to the built-in damping feature, the mast will lower slowly. Wait a few seconds for the section to fully retract, then push the lock ring inward to secure it. Repeat for all sections. Caution: Always monitor the height of the lamp head during retraction to prevent injury.

  • 2.4 Final Retraction: Before retracting the final top section, lower it just enough to ensure the bottom of the lamp head clears the cover. Secure the lock, adjust the lamp head to its original storage position, release the lock, fully retract the final section, and lock all rings to complete the process.

  3. Lighting and Warning Functions

  • 3.1 Lighting Modes: Lightly press the button on the left side of the lamp head cover to turn on the light. The brightness cycles through High, Medium, and Low modes. Press the button a fourth time to turn the light off.

  • 3.2 App Control: Download the designated app, turn on the lamp, and add the device via the app. You can then use Bluetooth to adjust brightness (stepless dimming from 10% to 100%), toggle the main and warning lights, monitor charging status, and check the remaining battery level.

  • 3.3 Warning Lights: Lightly press the button on the right side of the lamp head cover to turn on the red/blue warning lights. Press again to turn them off. The flash sequence is: 3 red flashes, 3 blue flashes, and 3 red-blue simultaneous flashes (frequency approximately 4Hz). The warning visibility distance is over 1 km.

  ---

  Precautions

  • Unauthorized Disassembly: Do not disassemble the lamp yourself; repairs must be performed by professional technicians.

  • Temperature: It is normal for the lamp head to become warm during extended operation.

  • Charging Port: Always ensure the protective rubber plug is securely inserted after use to prevent the ingress of dust or water. If the plug is damaged, contact our customer service or a local service center immediately.

  • Plug Handling: Do not pull the protective plug with excessive force to avoid breaking or removing the base.

  • Handling: When carrying by the handle, do not drop the lamp from a height to avoid damage to the casing or internal components.

  • Adjustment: To adjust the horizontal illumination angle, simply rotate the entire lamp base.

  • Battery Level: When the battery is fully charged, the indicator LEDs remain solid. When the battery level drops below 20%, the last LED indicator will blink to signal low power; please recharge the unit promptly.

  • Accessories: Always use the original charger provided by our company to prevent malfunctions.

  • Storage: If the product has not been used for more than three months, perform battery maintenance: fully discharge the battery, then fully charge it again.
